Model #:
NIT8661UC
Color:
Black

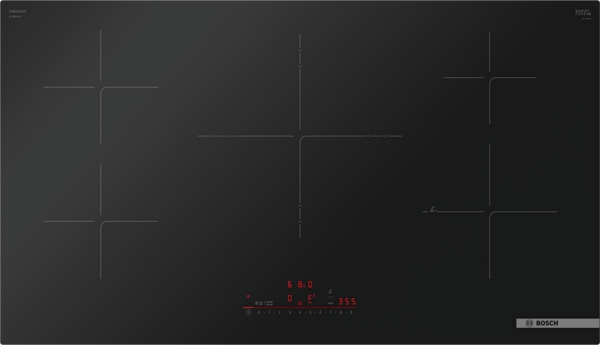

800 Series, Induction Cooktop, 36'', Black, Without Frame
800 Series, Induction Cooktop, 36'', Black, Without Frame
Price
Dimensions
Width: 37
Height: 3 12/16
Depth: 21 4/16
Color
Black
Features
AutoChef®
- automatically regulates cooking temperature for perfect results.
- Intelligently auto adjusts the element to the size of your cookware from 9" up to 13" for optimized cooking
- adds a boost of power to boil water and cook food more quickly
- Save your two most used settings through the Home Connect™ app
- Cooktop will turn off if the cooking zone has been in use for a long period without any changes
Specification
| General | |
| Product group | Hob |
| Brand | Bosch |
| Product name / series name | Cooking zone ceramic |
| SKU | NIT8661UC |
| Internal article number | NIT8661UC |
| EAN code | 4242005474639 |
| Construction type | Built-in |
| Type of control | Electronic |
| Type of control | DirectSelect 1.0 (Timer);Front;Illuminated |
| Energy input | Electric |
| Total number of cooktop burners | 5 |
| Number of gas burners | 0 |
| Number of electric cooking zones | 5 |
| Number of electric elements | 0 |
| Number of radiant elements | 0 |
| Number of halogen elements | 0 |
| Number of induction elements | 5 |
| Number of electric warming zones | 0 |
| Location of control panel | Front |
| Power Cord Length | 37'' |
| Basic surface material | Ceramic |
| Overall appliance dimensions (HxWxD) | 5/16''+3 3/4'' x 37'' x 21 1/4'' |
| Type of frame | Bevel front |
| Dimension of 1st heating element | 7'' |
| Current (A) | 40 |
| Volts (V) | 208-240 |
| Dimension of 3rd heating element | 7'' |
| Frequency (Hz) | 60 |
| Power cord length (cm) | 96.0 |
| Plug type | No Plug |
| Dimension of 5th heating element | 6'' |
| Height of the packed product (mm) | 172 |
| Width of the packed product (mm) | 608 |
| Depth of the packed product (mm) | 1076 |
| Product packaging dimensions (HxWxD) | 7 1/16'' x 42 1/8'' x 26 5/8'' |
| dishwasher safe pan support | No |
| Minimum height for installation (mm) | 505 |
| Maximum height for installation (mm) | 508 |
| Minimum width for installation (mm) | 883 |
| Maximum width for installation (mm) | 886 |
| Depth for installation (mm) | 95 |
| Net weight (kg) | 21.0 |
| Gross weight (kg) | 26.4 |
| Highlights | 17 power levels, fryingSensor Plus, powerBoost |
| Automatic programmes | No |
| Location of the heating element | front left |
| Type of heating element | Induction heating |
| Dimension of the heating element | 180 |
| Power of the heating element | 1.8 |
| Location of 2nd heating element | center left |
| Burners with booster | All |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Induction heating |
| Dimension of 3rd heating element (mm) | 180 |
| Power of 3rd heating element (kW) | 1.8 |
| Location of 4th heating element | middle back |
| Location of 5th heating element | back right |
| Type of 5th heating element | Induction heating |
| Dimension of 5th heating element (mm) | 145 |
| Power of 5th heating element (kW) | 1.4 |
| Location of 6th heating element | center right |
| Power of 1st heating element (kW in boost) | [3.1] |
| Power of 3rd heating element (kW in boost) | [3.1] |
| Power of 5th heating element (kW in boost) | [2.2] |
| Minimum distance from counter front | 2 1/4'' |
| Minimum distance from rear wall | 2'' |
| Power on indicator | No |
| Required cutout size (HxWxD) | 3 3/4'' x 34 7/8'' x 20'' |
| Plate on indicator | 0 |
| Type of regulation | Stepless energy regulated |
| Type of lid | Without |
| Ignition system | No |
| Main on/off switch | Yes |
| Safety device | Auto Safety Shutoff;Childproof Lock;Panel Lock;pan recognition;Pause Function;Power Management Function |
| Timer | Yes |
| Additional Image 1 | https://media3.bsh-group.com/Product_Shots/3000x3000/25694551_NIT8661UC-Controls-OFF_def.jpg |
| Additional Image 2 | https://media3.bsh-group.com/Product_Shots/3000x3000/25735253_NIT8661UC_Display_def.jpg |
| Additional Image 3 | https://media3.bsh-group.com/Product_Shots/3000x3000/23070575_DesignLine_Bosch_Bevelfront_Black_PGA2_def.jpg |
| Sealed Burners | No |
| UPC code | 825225973966 |
| Gross weight | 58.000 |
| Net weight | 46.000 |
